Gas Purification and Control Panel

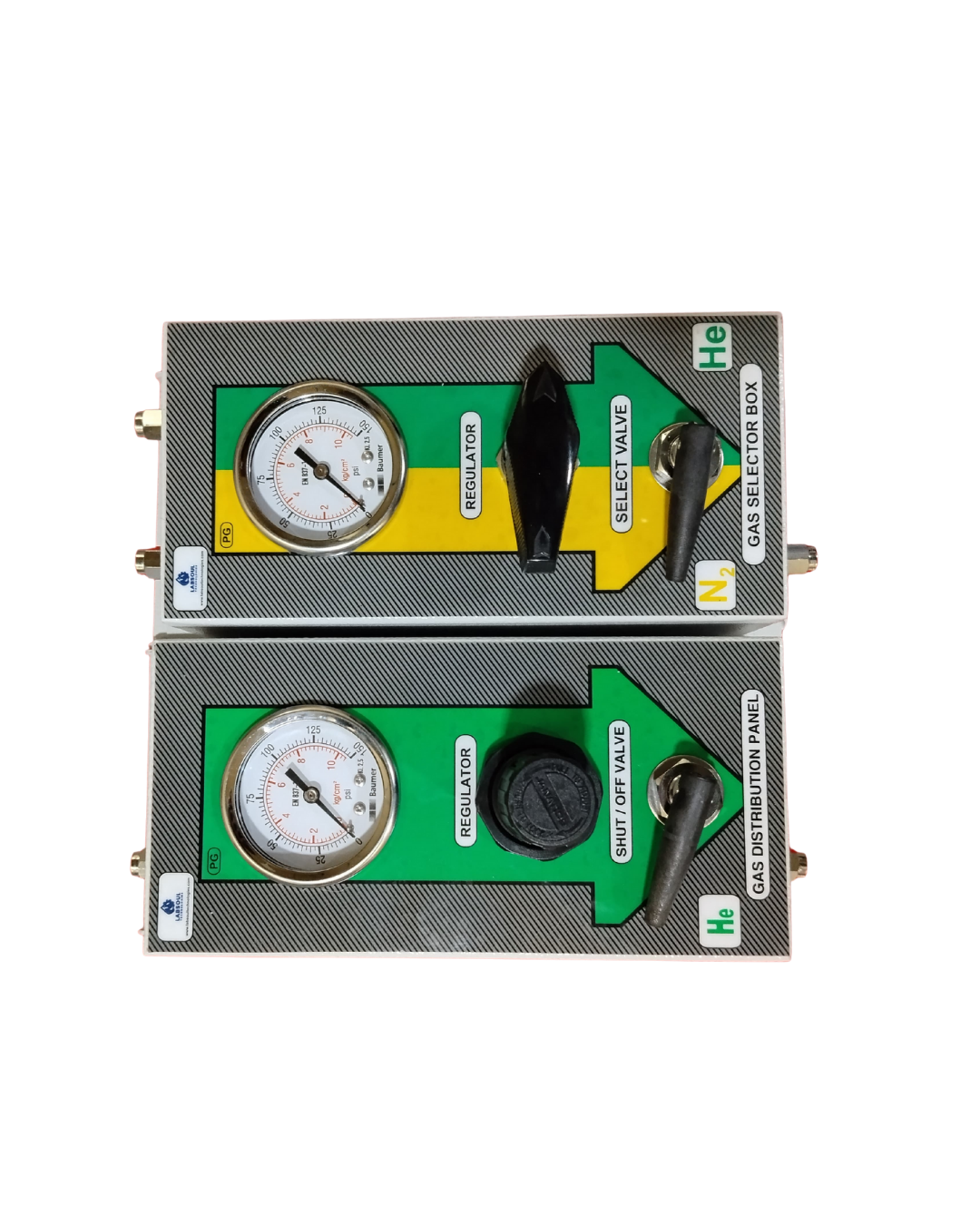

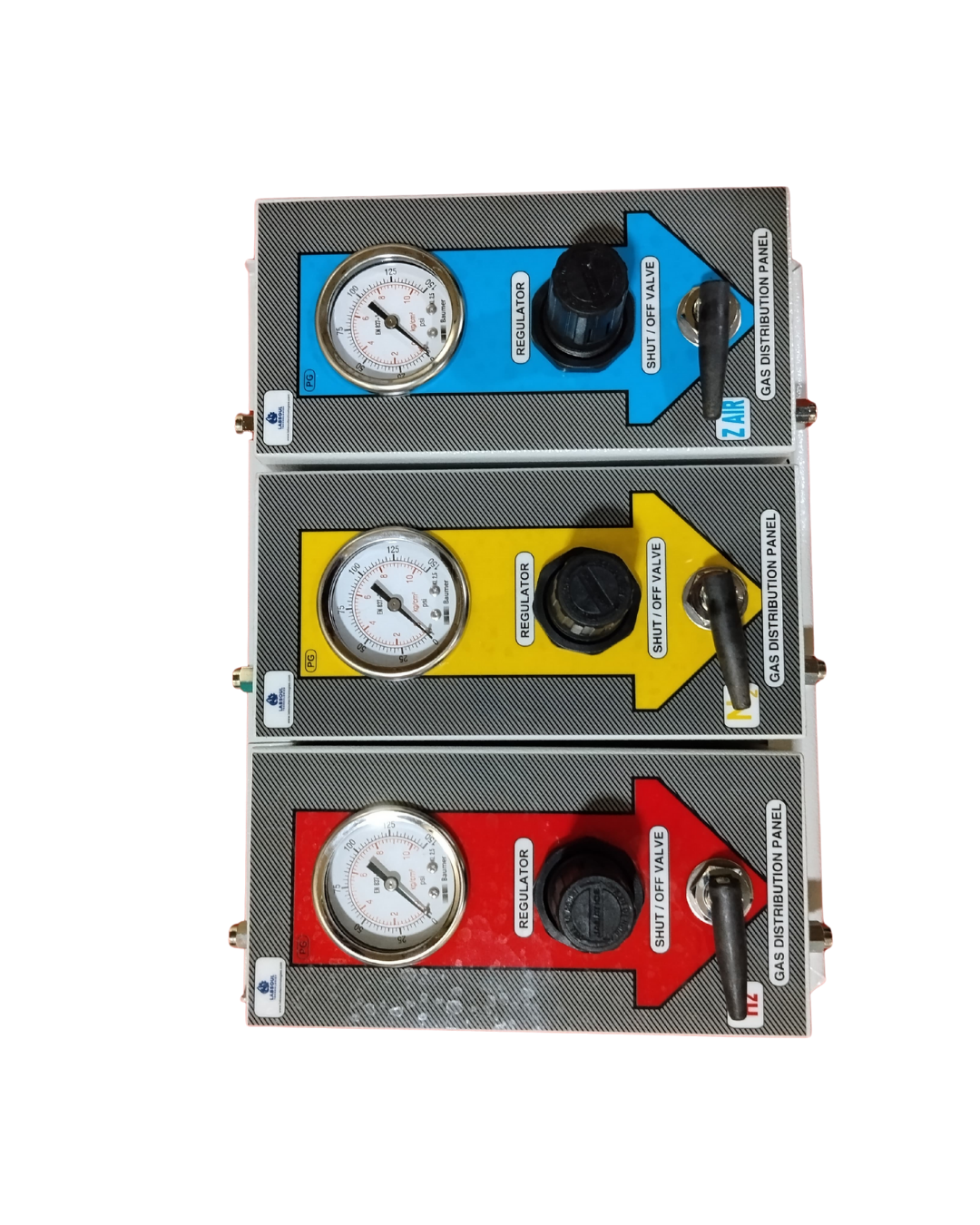

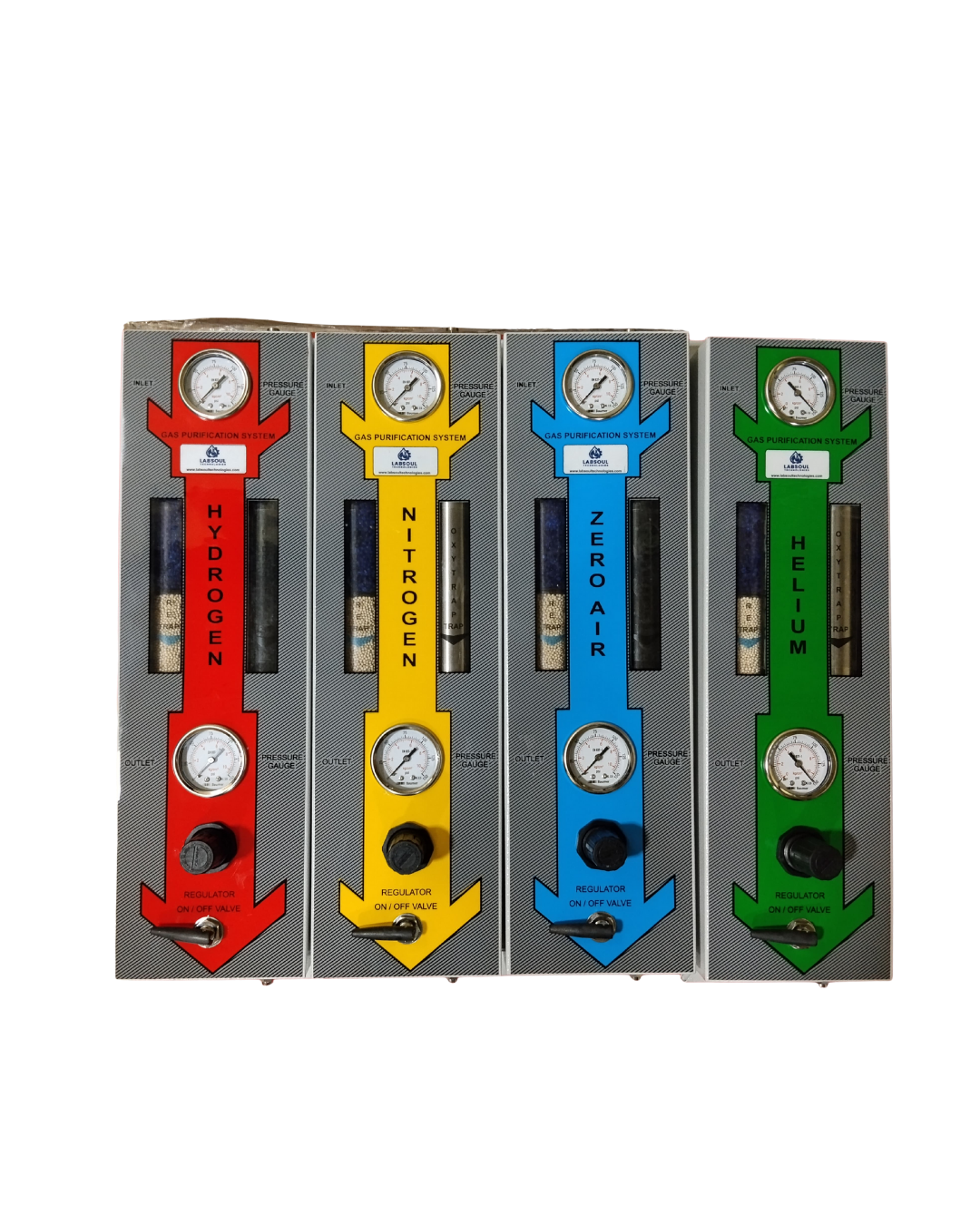

The Gas Purification and Control Panel for GC (S28 Series) is engineered to supply ultra-high purity gases required for sensitive gas chromatography applications. The system effectively removes moisture, hydrocarbons, and oxygen, helping to reduce baseline noise, drift, and detector flame problems while improving reproducibility and analytical accuracy. The panel features a compact, wall-mounted, powder-coated design with detachable filters for easy maintenance. It includes pressure regulators, toggle valves, pressure gauges, and SS tubing with color-coded sleeves for safe and efficient gas distribution. Optional configurations are available for GC-MS and LC-MS applications, making it suitable for laboratories, research centers, pharmaceutical QC labs, and analytical facilities.
Key Specifications
- ✓• Delivers ultra-high purity (UHP) grade gases ×
- ✓• Compact, wall-mounted, powder-coated panel design ×
- ✓• Easily detachable purification filters ×
- ✓• Maximum inlet pressure: 10 kg/cm² ×
- ✓• Maximum outlet pressure: 7 kg/cm² ×
- ✓• Pressure regulator range: 0–7 kg/cm² ×
- ✓• Toggle valves: On/Off type ×
- ✓• Pressure gauge range: 0–10 kg/cm² ×
- ✓• SS tubing with colour-coded sleeves ×
- ✓• Panel size: 650 W × 559 H × 75 D mm ×
- ✓• Net weight: 24 kg ×
- ✓• Optional larger Oxytrap for GC-MS / LC-MS ×
Applications & Use Cases
• Gas Chromatography (GC) systems ×
• GC-MS and LC-MS analytical instruments ×
• Laboratories and research centers ×
• Pharmaceutical quality control laboratories ×
• Chemical and petrochemical laboratories ×
• Analytical testing and calibration facilities ×
